Accessible Bath
Upgrading a 1950’s bathroom for increased accessibility involved removing the cast iron tub followed by structural modifications of the floor to accommodate a curbless, walk-in / roll-in shower.
Insulation and wooden blocking were added to the wall cavities prior to installing the cement backer board and waterproofing membrane. (The blocking allows for the easy addition of grab bars and other accessories at any location necessary.)
Quartz floor tile was selected for high traction, comfort, and aesthetics and large format porcelain wall tile was selected for durability and a modern feel.
The original sink, vanity, and mirror were retained. the countertop was replaced with large format porcelain tile and a satin aluminum edge.
New shower fixtures, LED lighting, and exhaust fan / heater completed the job.

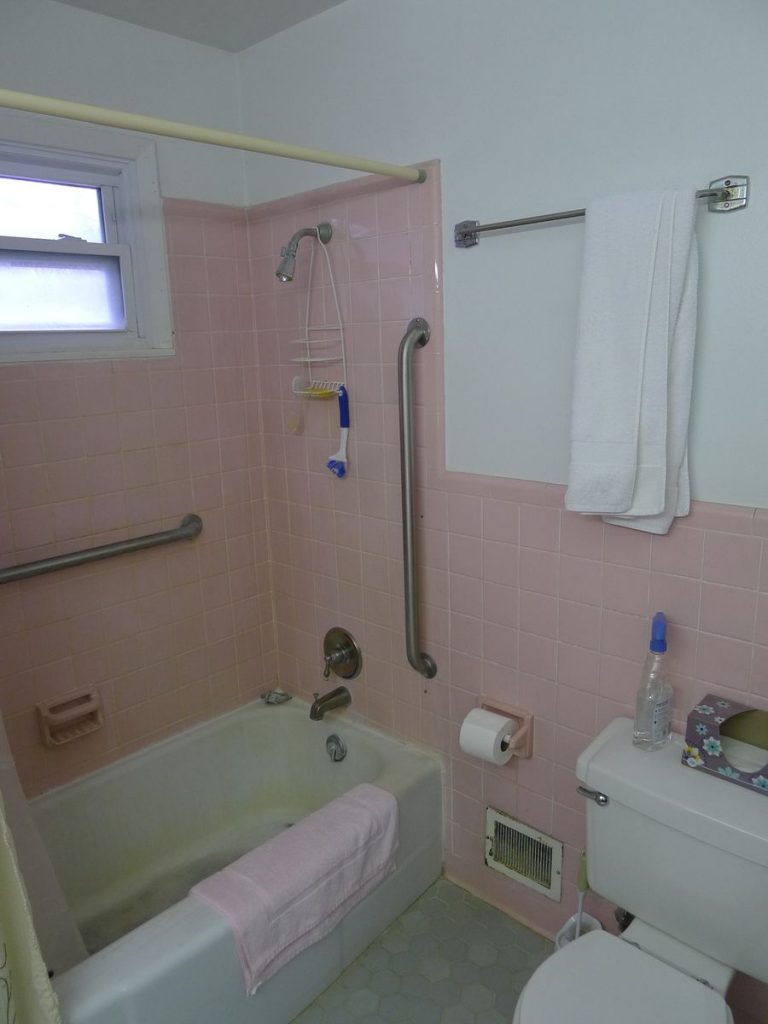

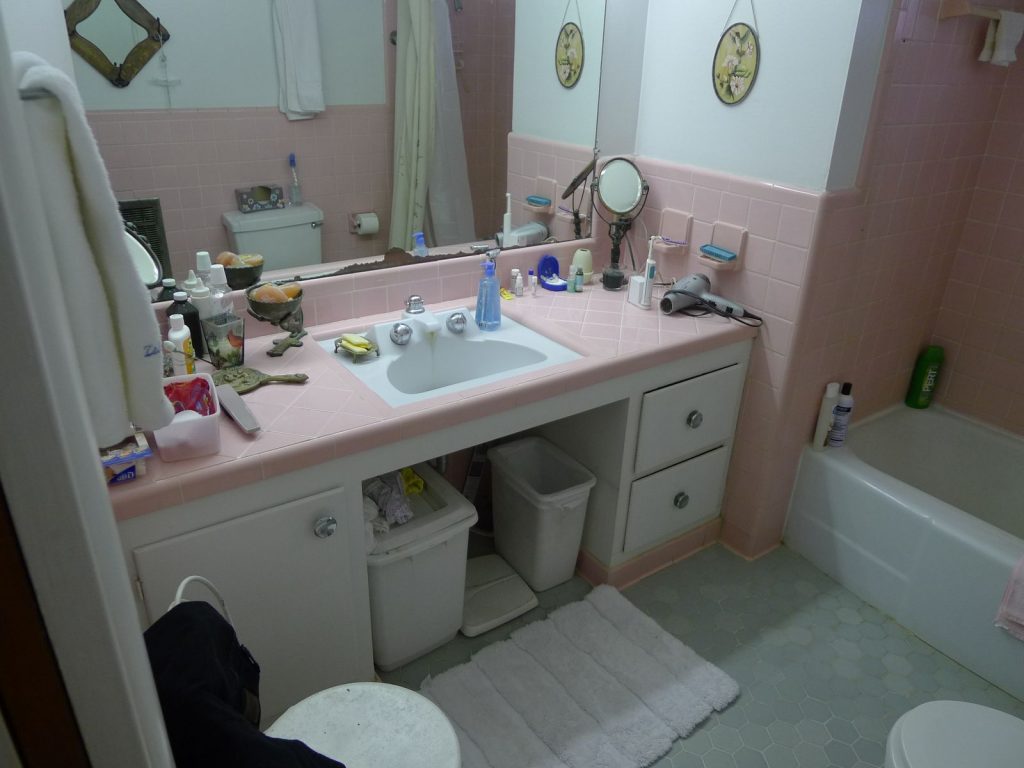

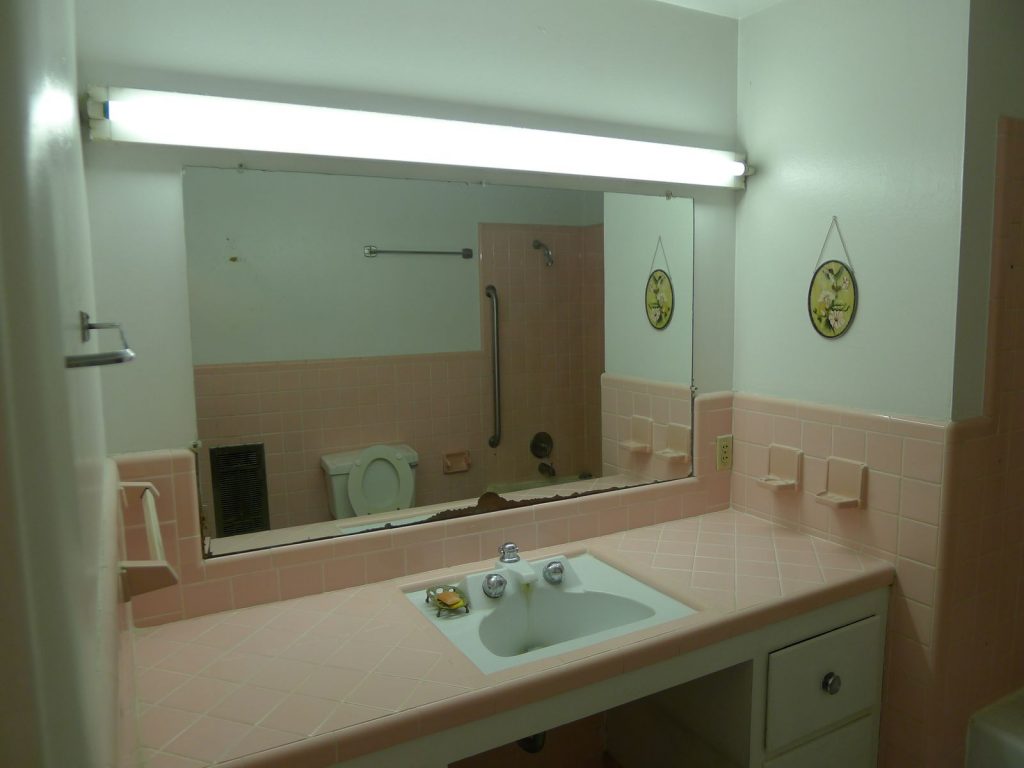

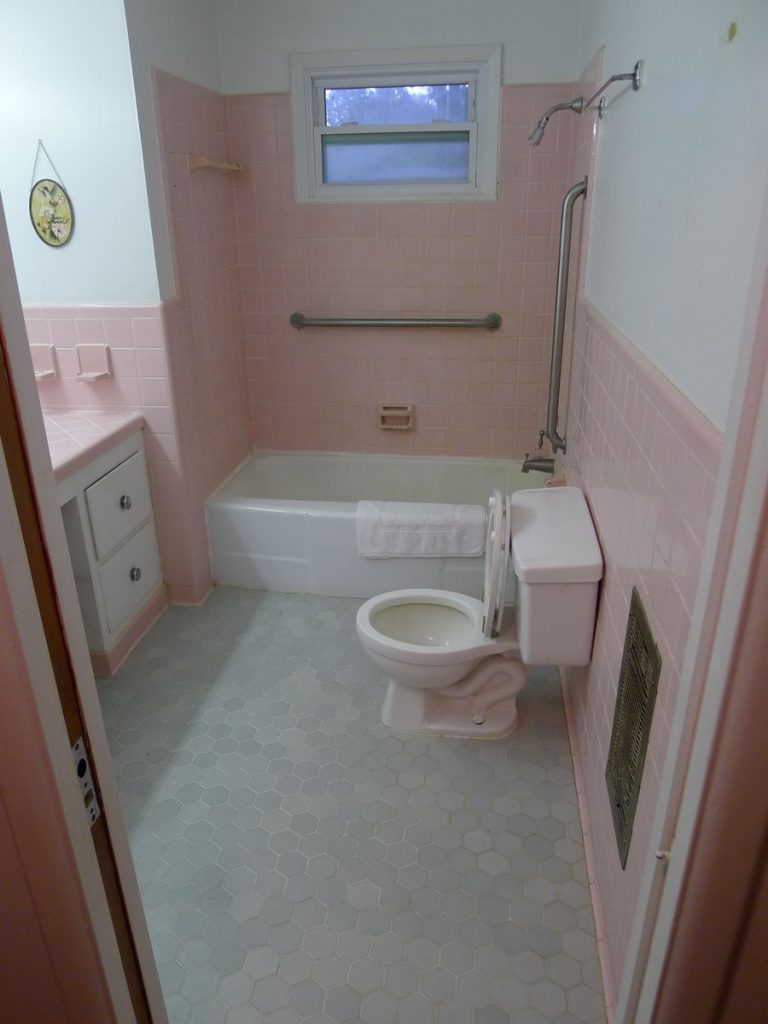

Before
Before
Before
Before

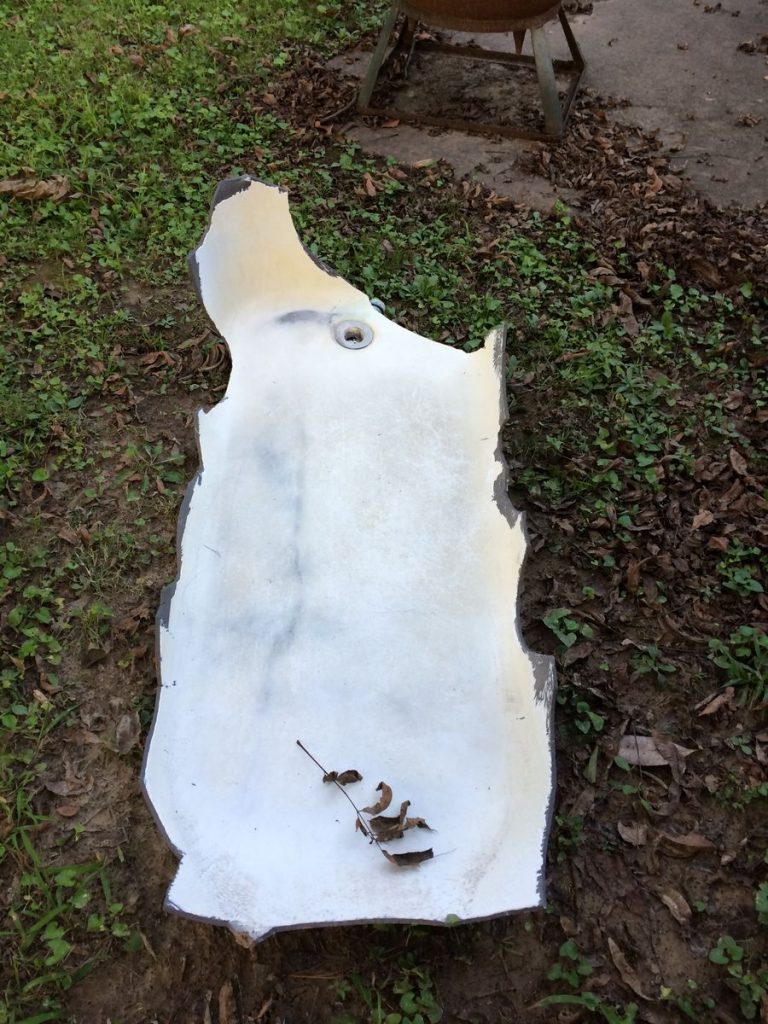

The cast-iron tub was removed in pieces

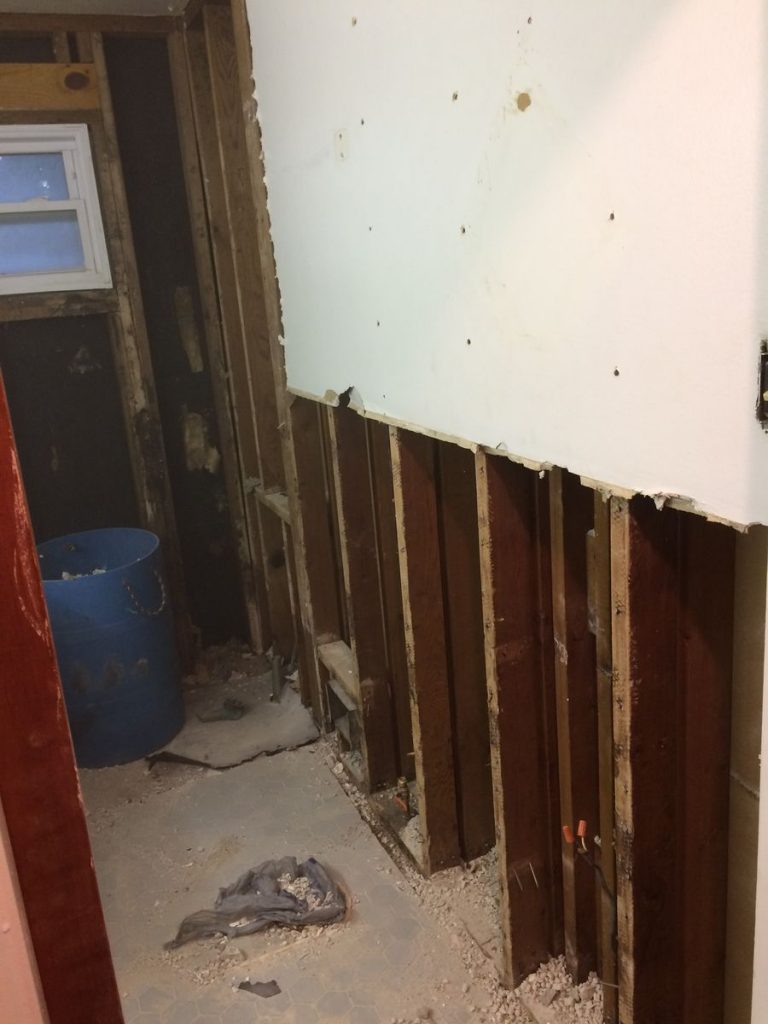

Wall demo

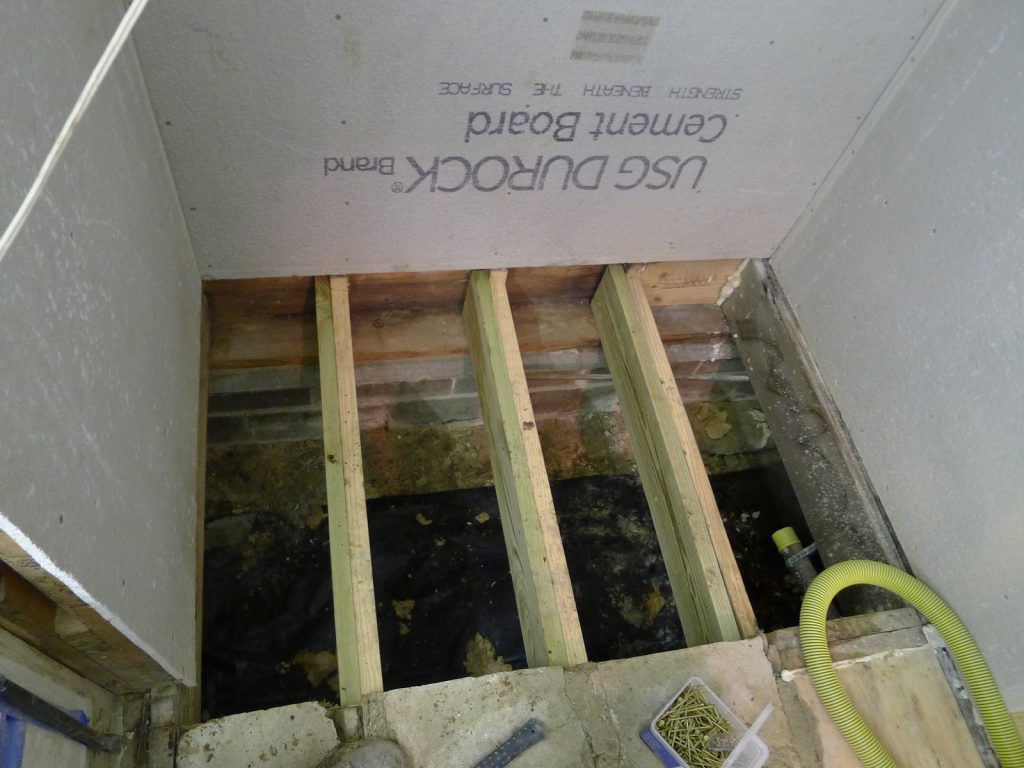

Structural modifications to create a curbless sloping shower floor

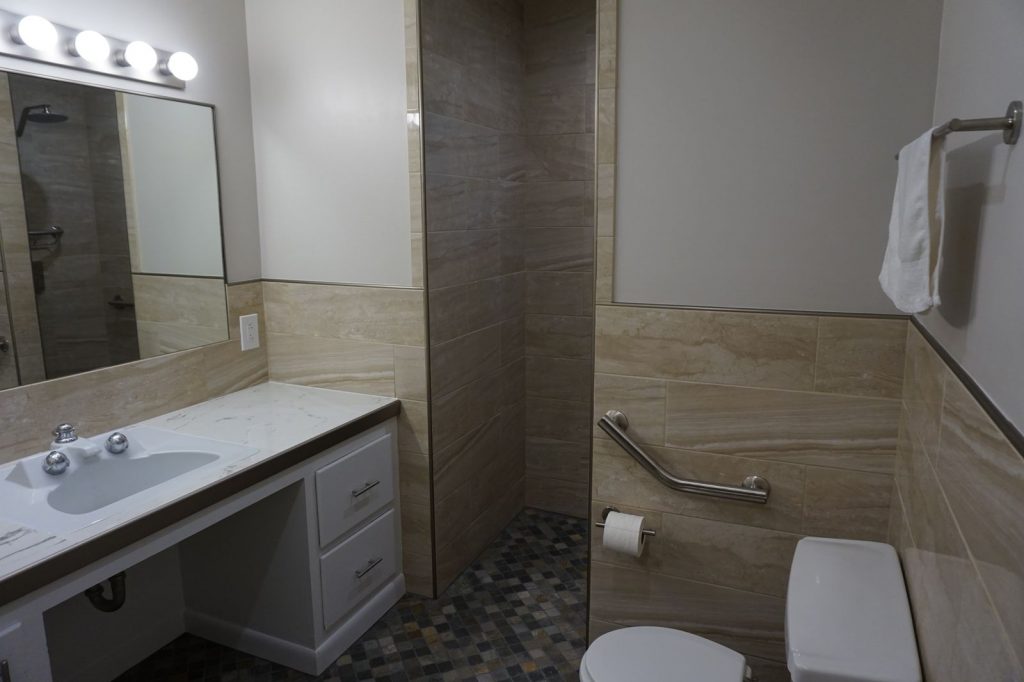

After

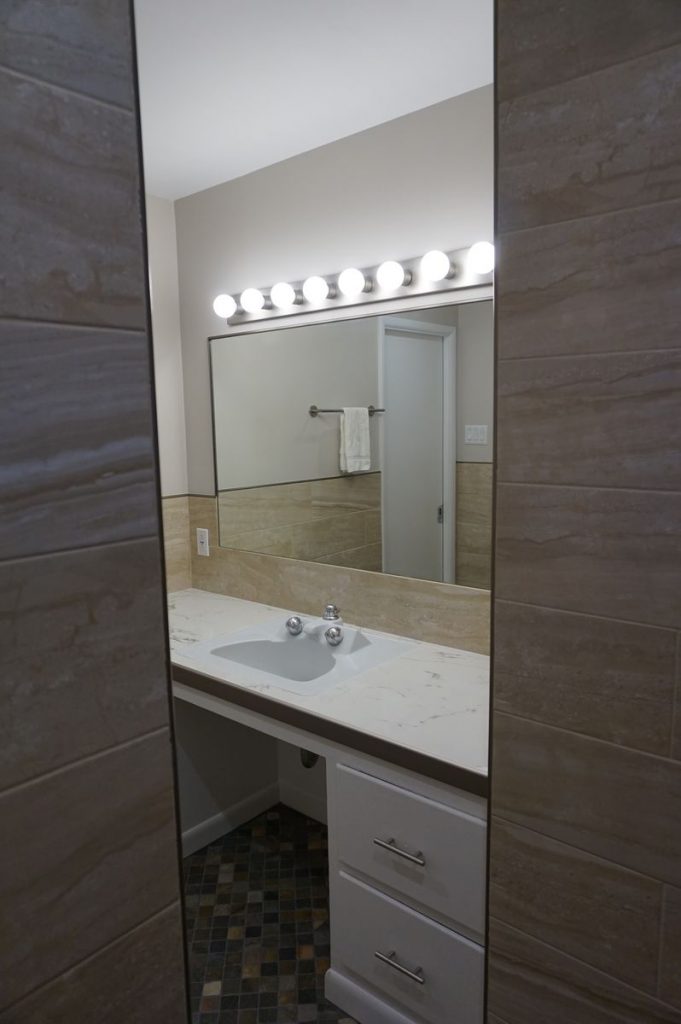

LED vanity lighting

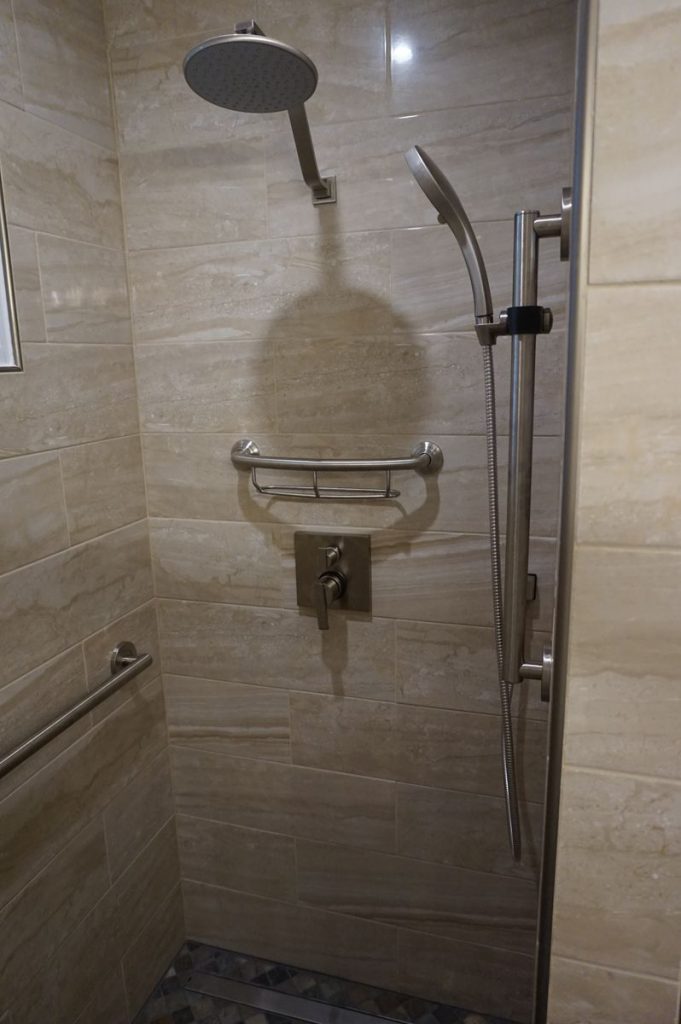

Accessible shower fixtures

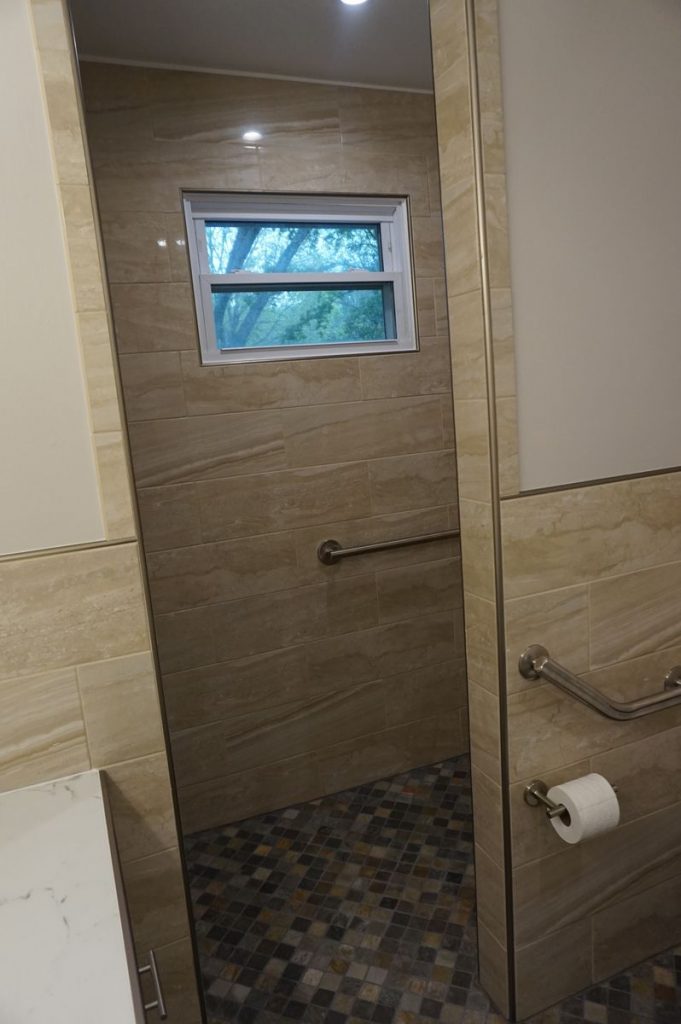

Curbless, doorless shower

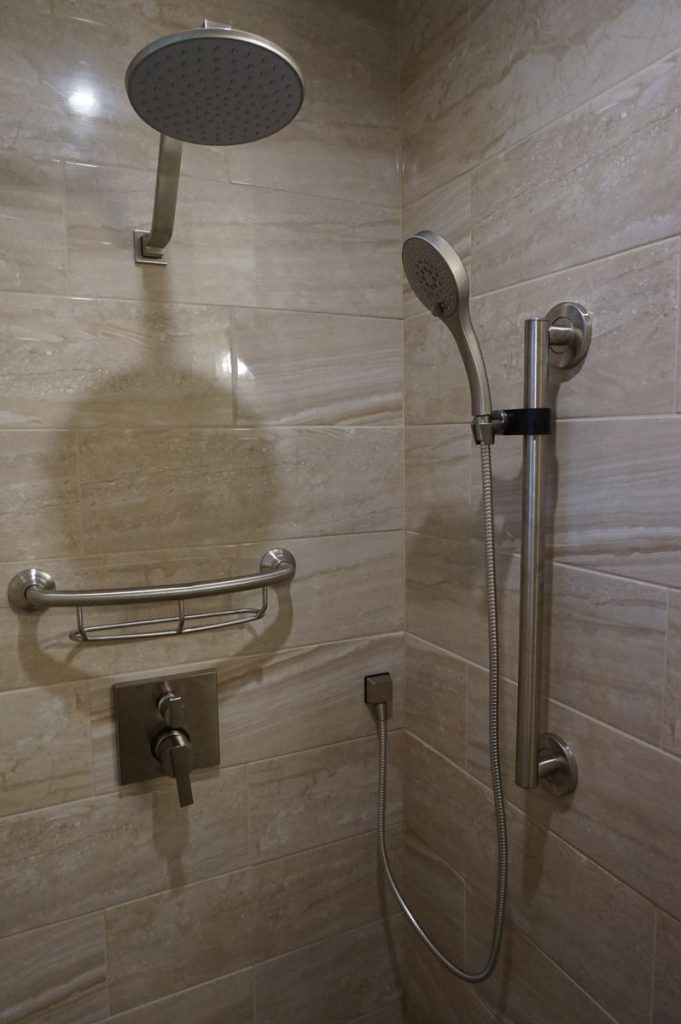

Modern shower fittings

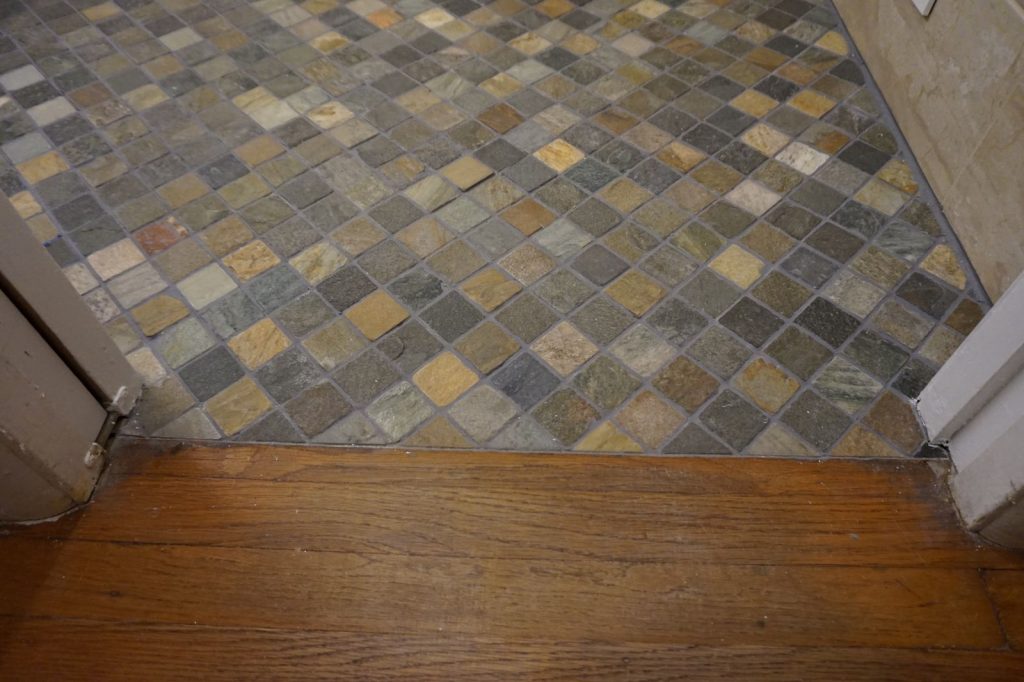

New quartz floor tile meets the existing oak floor without a threshold

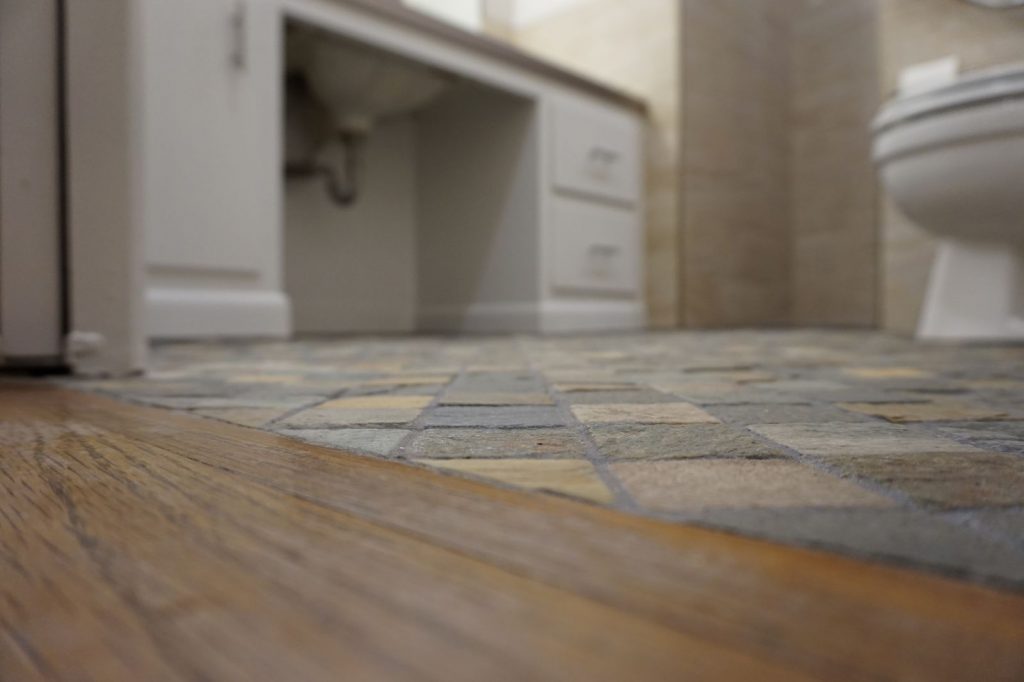

Floor detail
