Curved Wall Forms

Elaine Massacre Memorial

Building curved walls started by using a cardboard template to cut curved plywood pieces that would form the bottom and top of the wall. Wood studs were straightened and attached along the curved plywood tracks every 6 inches. Then, a double layer of 1/4″ inch plywood was attached to the face of the studs. A serious amount of sanding, filling, waterproofing, and re-sanding produced an ultra-smooth form face to cast concrete against.

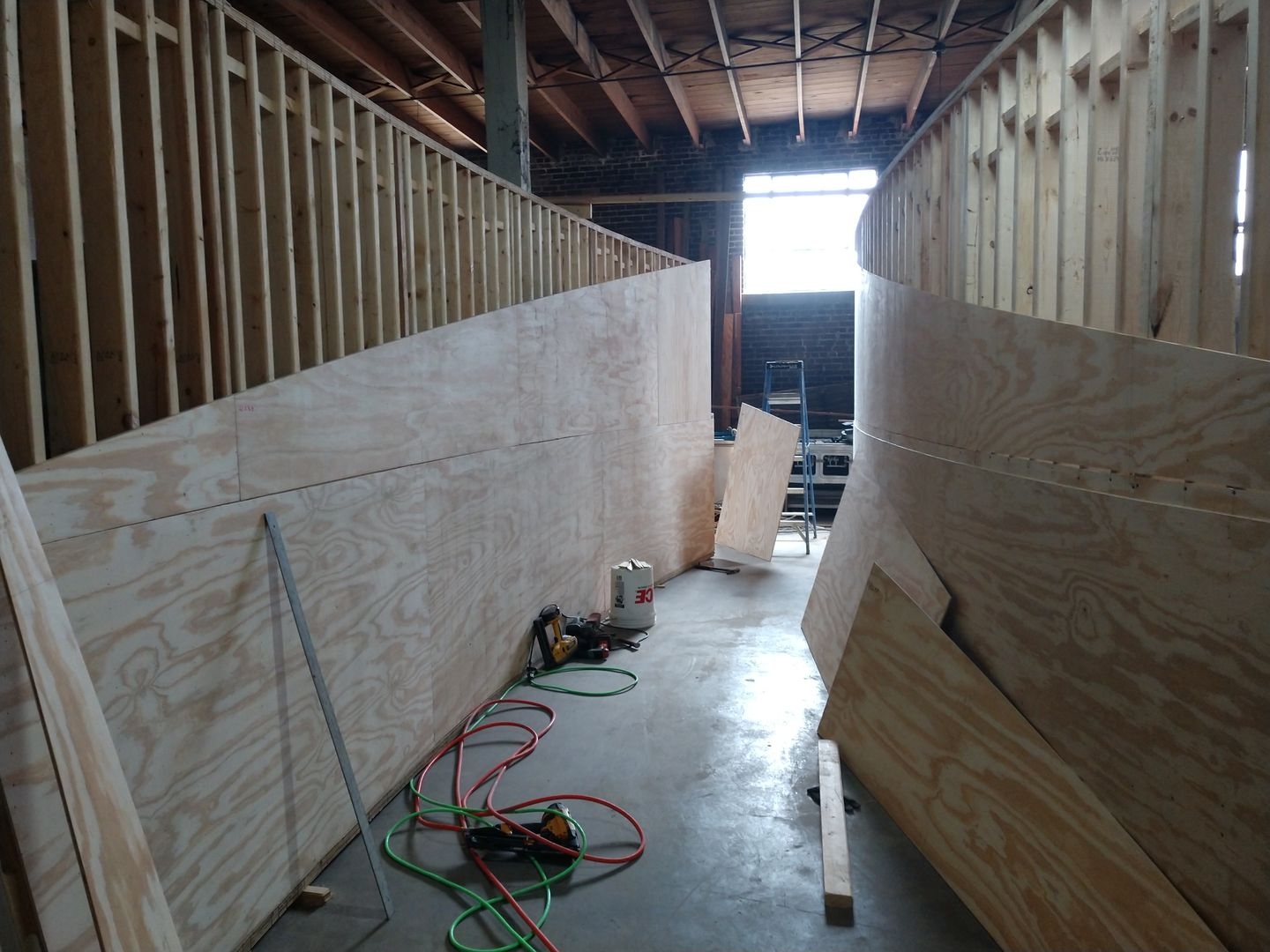

Wall-Forms_IMG_20181111_133411979

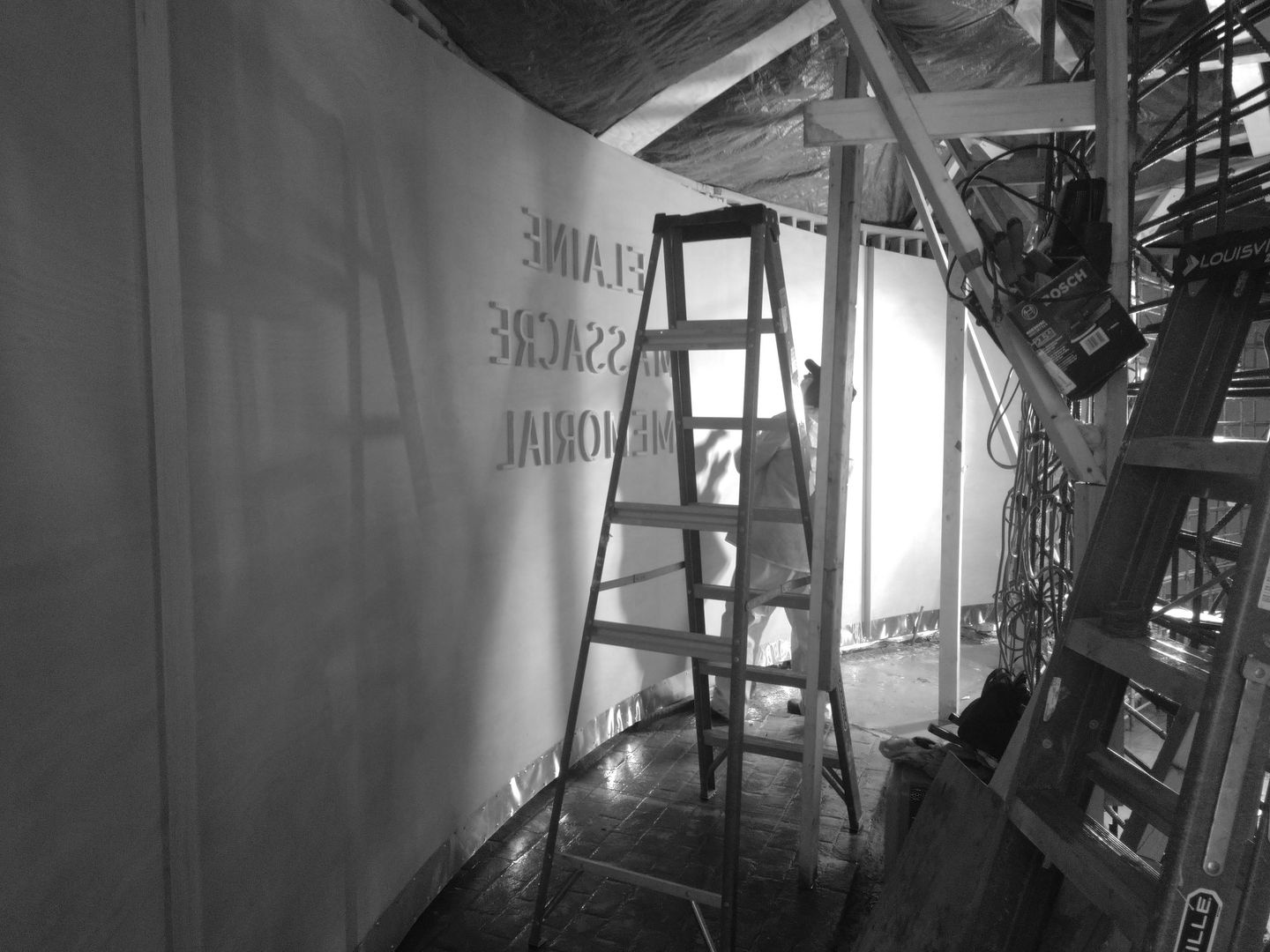

Wall-Forms_IMG_20190309_145602226

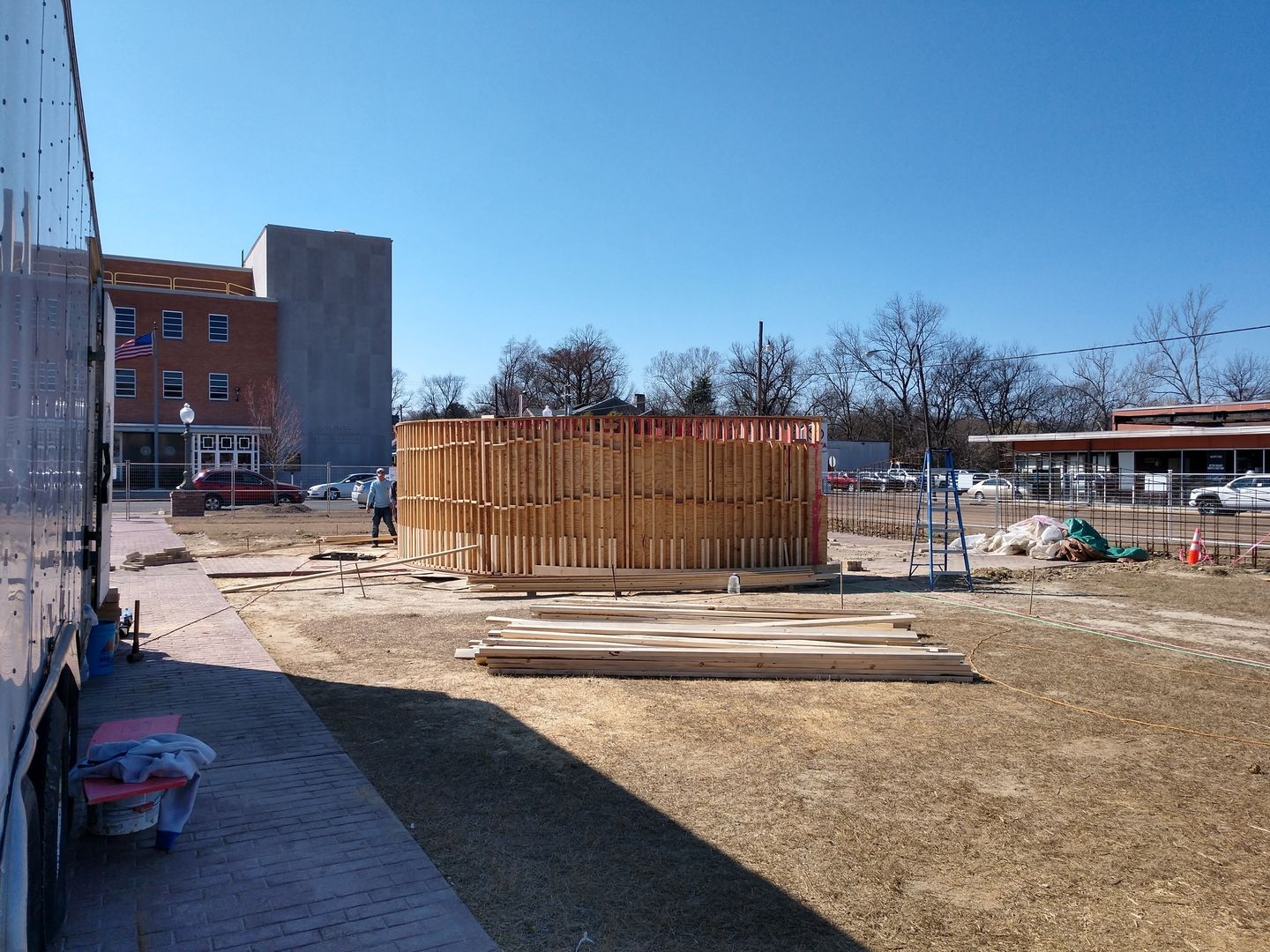

Wall-Forms_IMG_20190318_153507853_HDR

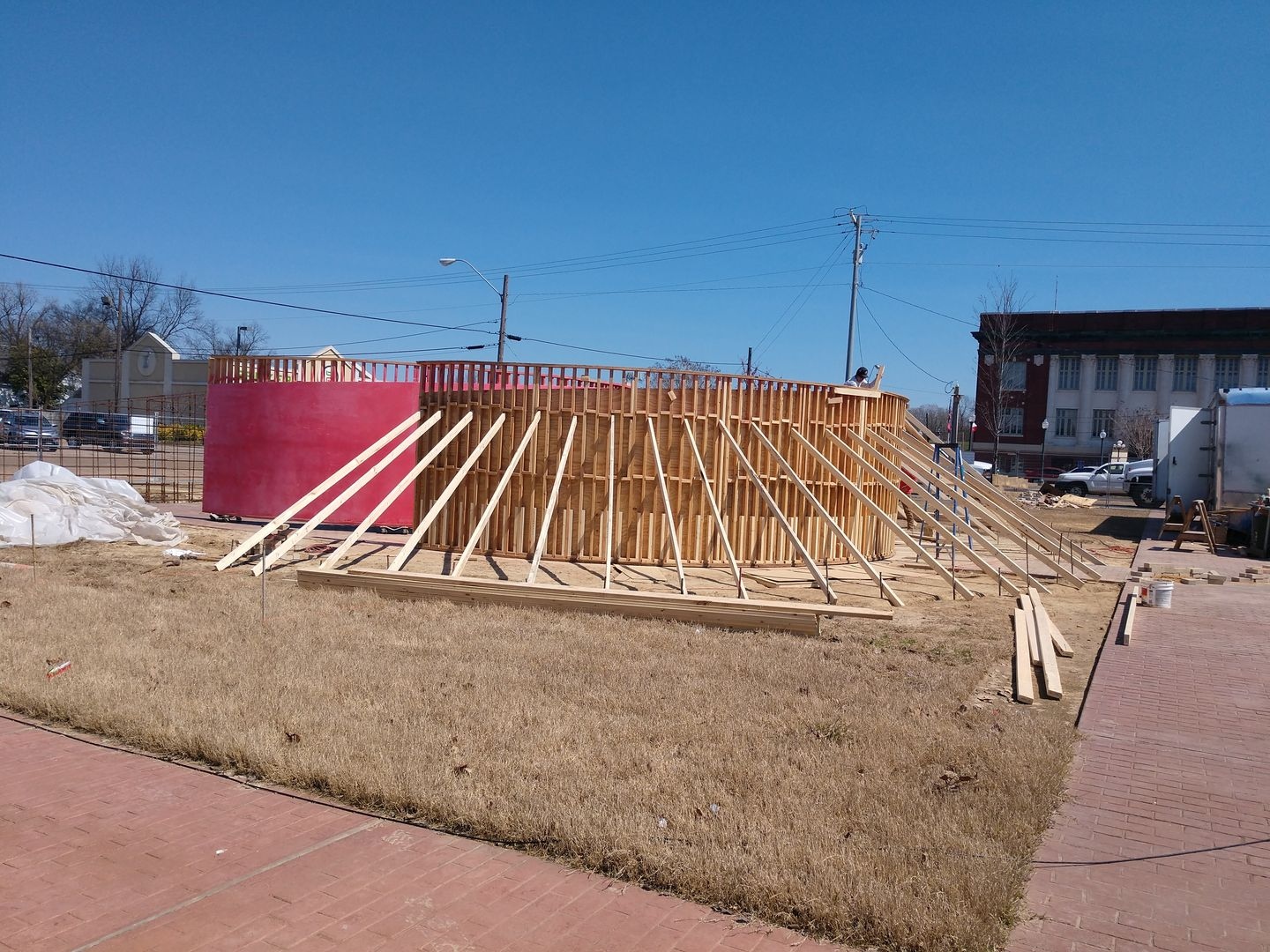

Wall-Forms_IMG_20190319_130543859

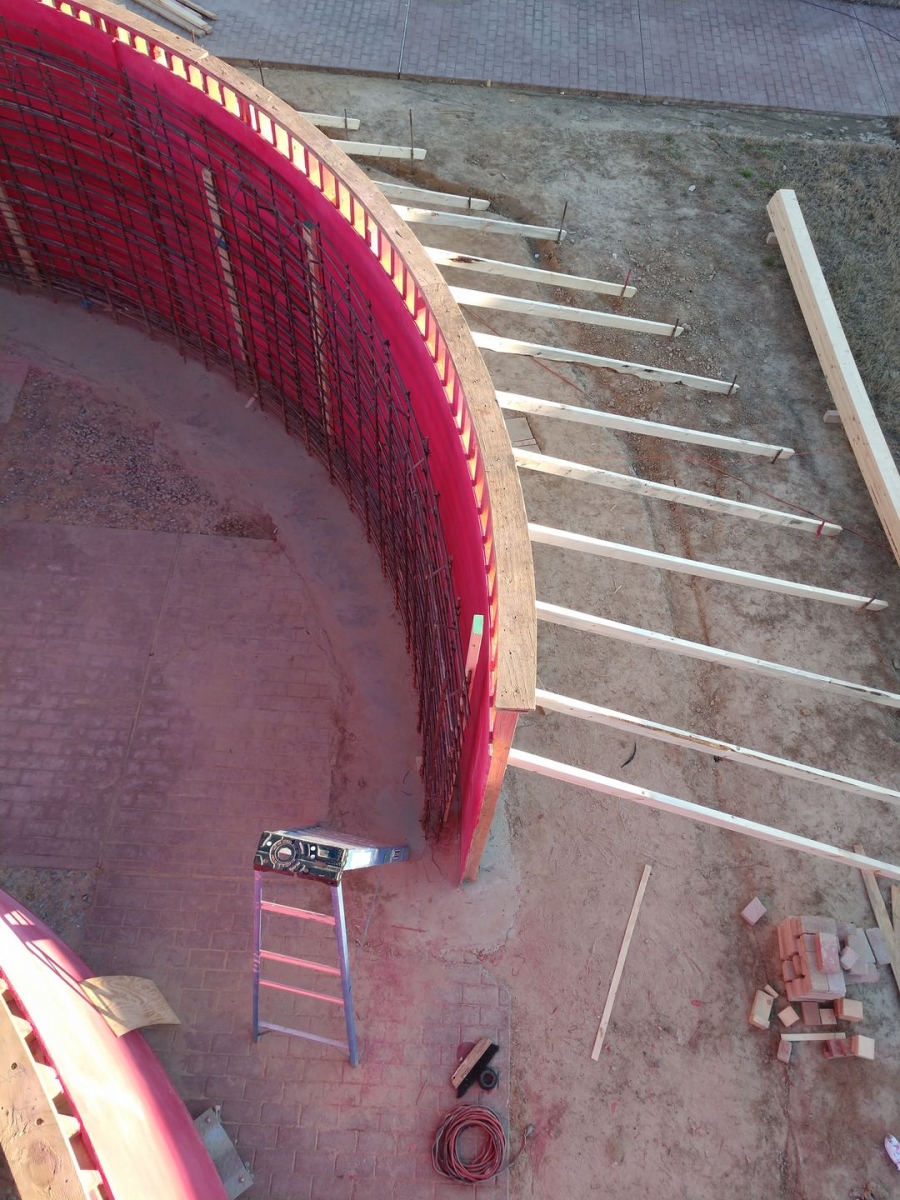

Wall-Forms_IMG_20190319_175551500

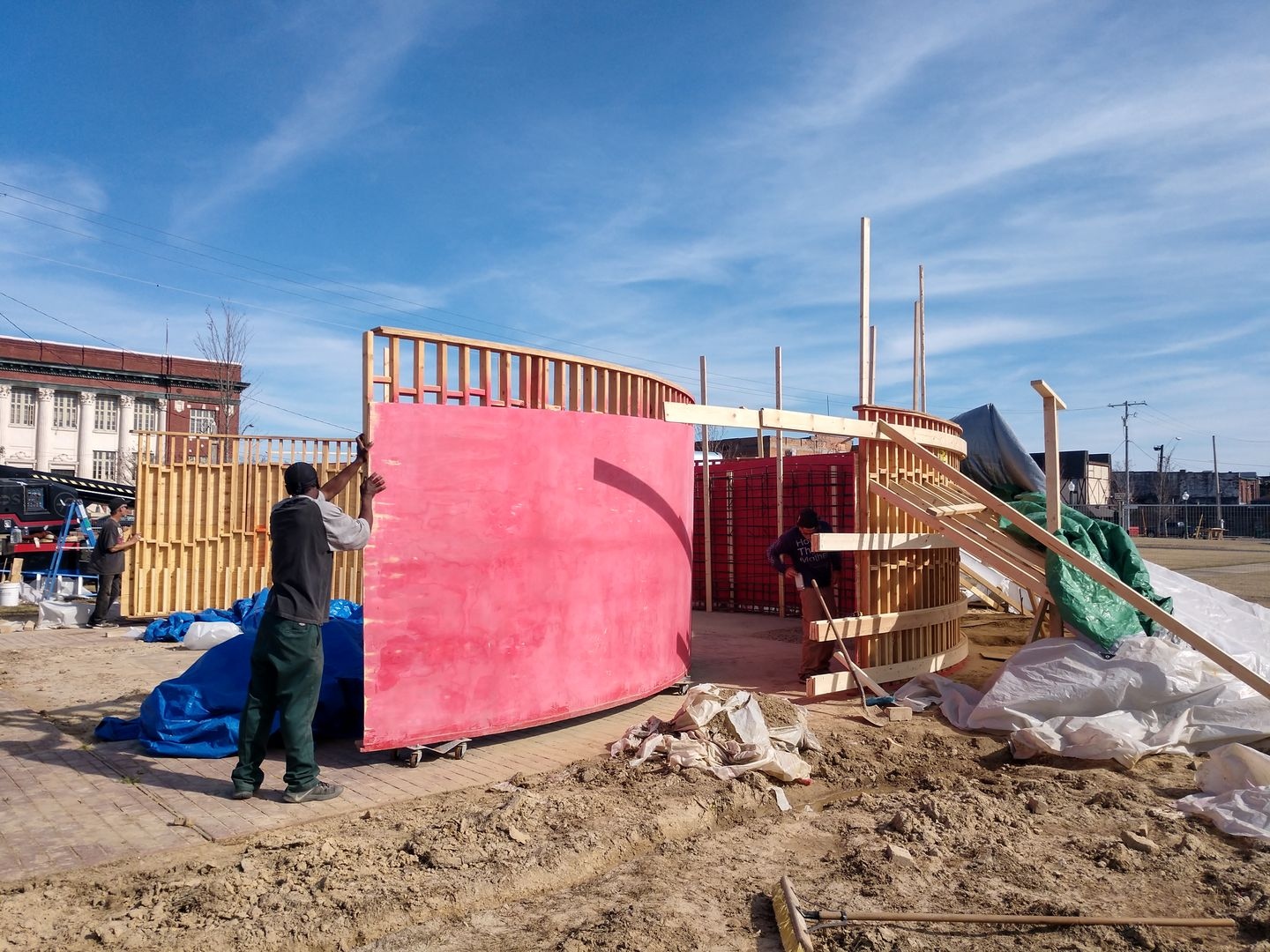

Wall-Forms_IMG_20190328_161529764_HDR
